Cell2Fate analysis of mouse erythroid dataset
[1]:
import cell2fate as c2f
import scanpy as sc
import numpy as np
import os
import matplotlib.pyplot as plt
data_name = 'MouseErythroid'
Global seed set to 0
[2]:
# Where to get data from and where to save results (you need to modify this)
data_path = '/nfs/team283/aa16/data/fate_benchmarking/benchmarking_datasets/MouseErythroid/'
results_path = '/nfs/team283/aa16/cell2fate_paper_results/MouseErythroid/'
[3]:
# Downloading data into specified directory:
os.system('cd ' + data_path + ' && wget -q https://cell2fate.cog.sanger.ac.uk/' + data_name + '/' + data_name + '_anndata.h5ad')
[3]:
0
Load the data and extract most variable genes (and optionally remove some clusters).
[4]:
adata = sc.read_h5ad(data_path + data_name + '_anndata.h5ad')
clusters_to_remove = []
adata = c2f.utils.get_training_data(adata, cells_per_cluster = 10**5, cluster_column = 'clusters',
remove_clusters = clusters_to_remove,
min_shared_counts = 20, n_var_genes= 3000)
Keeping at most 100000 cells per cluster
Filtered out 47456 genes that are detected 20 counts (shared).
Extracted 3000 highly variable genes.
[5]:
n_modules = c2f.utils.get_max_modules(adata)
Leiden clustering ...
2023-07-21 09:40:54.679933: W tensorflow/compiler/xla/stream_executor/platform/default/dso_loader.cc:64] Could not load dynamic library 'libnvinfer.so.7'; dlerror: libnvinfer.so.7: cannot open shared object file: No such file or directory; LD_LIBRARY_PATH: /software/gcc-8.2.0/lib64/
2023-07-21 09:40:54.680361: W tensorflow/compiler/xla/stream_executor/platform/default/dso_loader.cc:64] Could not load dynamic library 'libnvinfer_plugin.so.7'; dlerror: libnvinfer_plugin.so.7: cannot open shared object file: No such file or directory; LD_LIBRARY_PATH: /software/gcc-8.2.0/lib64/
2023-07-21 09:40:54.680385: W tensorflow/compiler/tf2tensorrt/utils/py_utils.cc:38] TF-TRT Warning: Cannot dlopen some TensorRT libraries. If you would like to use Nvidia GPU with TensorRT, please make sure the missing libraries mentioned above are installed properly.
Number of Leiden Clusters: 9
Maximal Number of Modules: 10

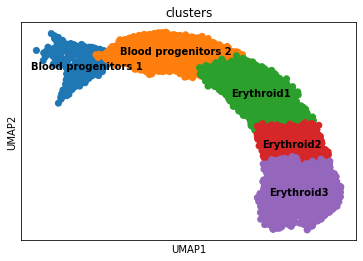

Overview of the dataset on a UMAP, coloured by cluster assingment.
[6]:
fig, ax = plt.subplots(1,1, figsize = (6, 4))
sc.pl.umap(adata, color = ['clusters'], s = 200, legend_loc='on data', show = False, ax = ax)
plt.savefig(results_path + data_name + 'UMAP_clusters.pdf')
As usual in the scvi-tools workflow we register the anndata object …
[7]:
c2f.Cell2fate_DynamicalModel.setup_anndata(adata, spliced_label='spliced', unspliced_label='unspliced',
batch_key = 'sequencing.batch')
… and initialize the model:
[8]:
mod = c2f.Cell2fate_DynamicalModel(adata, n_modules = n_modules)
Let’s have a look at the anndata setup:
[9]:
mod.view_anndata_setup()
Anndata setup with scvi-tools version 0.16.1.
Setup via `Cell2fate_DynamicalModel.setup_anndata` with arguments:
{ │ 'layer': None, │ 'batch_key': 'sequencing.batch', │ 'labels_key': None, │ 'unspliced_label': 'unspliced', │ 'spliced_label': 'spliced', │ 'cluster_label': None }
Summary Statistics ┏━━━━━━━━━━━━━━━━━━┳━━━━━━━┓ ┃ Summary Stat Key ┃ Value ┃ ┡━━━━━━━━━━━━━━━━━━╇━━━━━━━┩ │ n_cells │ 9815 │ │ n_vars │ 3000 │ │ n_batch │ 3 │ └──────────────────┴───────┘
Data Registry ┏━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓ ┃ Registry Key ┃ scvi-tools Location ┃ ┡━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩ │ unspliced │ adata.layers['unspliced'] │ │ spliced │ adata.layers['spliced'] │ │ batch │ adata.obs['_scvi_batch'] │ │ ind_x │ adata.obs['_indices'] │ └──────────────┴───────────────────────────┘
batch State Registry ┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━┓ ┃ Source Location ┃ Categories ┃ scvi-tools Encoding ┃ ┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━┩ │ adata.obs['sequencing.batch'] │ 1 │ 0 │ │ │ 2 │ 1 │ │ │ 3 │ 2 │ └───────────────────────────────┴────────────┴─────────────────────┘
Training the model:
[10]:
mod.train(use_gpu=True)
GPU available: True, used: True
TPU available: False, using: 0 TPU cores
IPU available: False, using: 0 IPUs
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
Epoch 500/500: 100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 500/500 [20:01<00:00, 2.40s/it, v_num=1, elbo_train=3.27e+7]

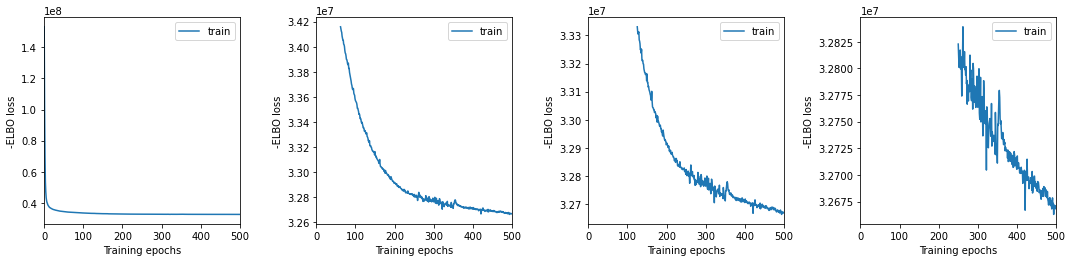

We plot training history over multiple windows to effectively assess convergence (which is not reached here but it is close.)
[11]:
mod.view_history()
Here we export the model posterior to the anndata object:
[12]:
adata = mod.export_posterior(adata)
sample_kwargs['batch_size'] 9815
Sampling local variables, batch: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 1/1 [00:42<00:00, 42.65s/it]
Sampling global variables, sample: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 29/29 [00:24<00:00, 1.17it/s]
Warning: Saving ALL posterior samples. Specify "return_samples: False" to save just summary statistics.
One of the interesting parameter posteriors that was saved to the anndata object is the differentiation time:
[13]:
fig, ax = plt.subplots(1,2, figsize = (15, 5))
sc.pl.umap(adata, color = ['Time (hours)'], legend_loc = 'right margin',
size = 200, color_map = 'inferno', ncols = 2, show = False, ax = ax[0])
sc.pl.umap(adata, color = ['Time Uncertainty (sd)'], legend_loc = 'right margin',
size = 200, color_map = 'inferno', ncols = 2, show = False, ax = ax[1])
plt.savefig(results_path + data_name + 'UMAP_Time.pdf')
We can compute some module statistics to visualize the activity of the underlying modules:
[14]:
adata = mod.compute_module_summary_statistics(adata)
mod.plot_module_summary_statistics(adata, save = results_path + data_name + 'module_summary_stats_plot.pdf')
[15]:
# mod.compare_module_activation(adata, chosen_modules = [0,1,2,3,4,5],
# save = results_path + data_name + 'module_activation_comparison.pdf')

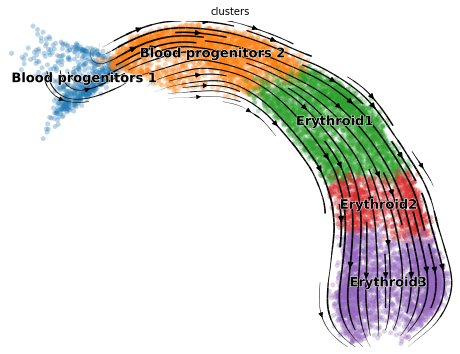

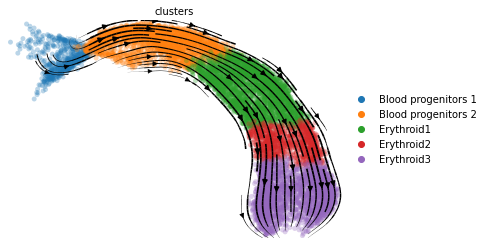

And of course we can make the usual visualization of total RNAvelocity on a UMAP:
[16]:
mod.compute_and_plot_total_velocity(adata, save = results_path + data_name + 'total_velocity_plots.png')
Computing total RNAvelocity ...
[17]:
import matplotlib.pyplot as plt
import scvelo as scv
fix, ax = plt.subplots(1, 1, figsize = (8, 6))
scv.pl.velocity_embedding_stream(adata, basis='umap', save = False, vkey='Velocity',
show = False, ax = ax, legend_fontsize = 13)
plt.savefig(results_path + data_name + 'total_velocity_plots.png')

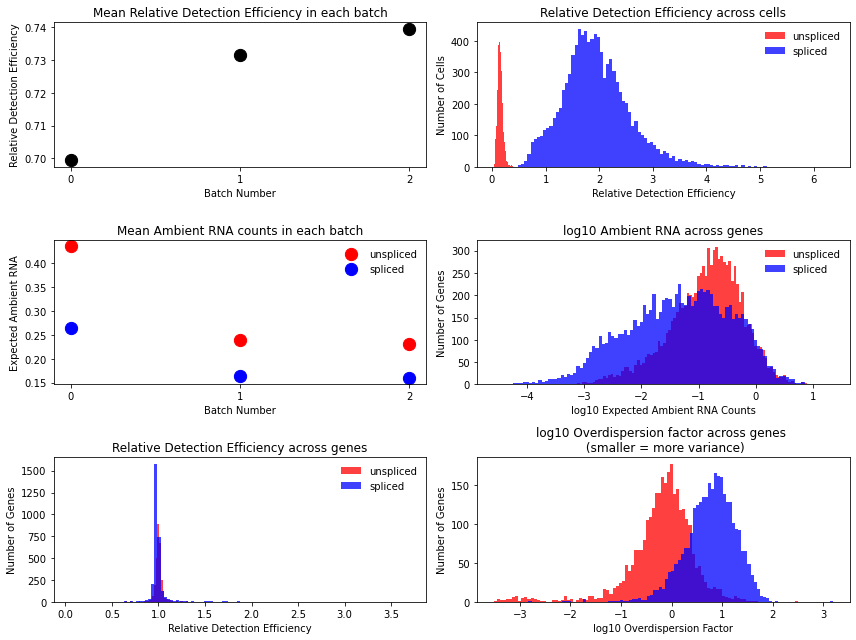

Technical variables usually show lower detection efficiency and higher noise (= lower overdispersion parameter) for unspliced counts:
[18]:
mod.plot_technical_variables(adata, save = results_path + data_name + 'technical_variables_overview_plot.pdf')
This is how to have a look at the various rate parameters the optimization converged to:
[19]:
print('A_mgON mean:', np.mean(mod.samples['post_sample_means']['A_mgON']))
print('gamma_g mean:', np.mean(mod.samples['post_sample_means']['gamma_g']))
print('beta_g mean:', np.mean(mod.samples['post_sample_means']['beta_g']))
print('lam_mi, all modules: \n \n', np.round(mod.samples['post_sample_means']['lam_mi'],2))
A_mgON mean: 0.057162873
gamma_g mean: 0.7793332
beta_g mean: 0.8615941
lam_mi, all modules:
[[[2.91 0.92]]
[[3.99 3.96]]
[[3.72 3.63]]
[[4.28 4.47]]
[[4.56 4.35]]
[[4.42 4.07]]
[[4.8 4.48]]
[[4.8 2.28]]
[[1.7 1.58]]
[[2.37 1.54]]]
This method returns orders the genes and TFs in each module from most to least enriched. And it also performs gene set enrichment analysis:
[20]:
tab, all_results = mod.get_module_top_features(adata, p_adj_cutoff=0.01, background = adata.var_names)
tab.to_csv(results_path + data_name + 'module_top_features_table.csv')
[21]:
tab
[21]:
| Module Number | Genes Ranked | TFs Ranked | Terms Ranked | |
|---|---|---|---|---|
| 0 | 0 | Cab39, Wee1, Zcchc8, Stt3a, Abi1, Phip, Tmem21... | Zcchc11, Atrx, Smarcad1, Kdm5c, Terf1, Sp3, Th... | proteasome-mediated ubiquitin-dependent protei... |
| 1 | 1 | Med12l, Fcer1g, Angpt1, Gzmg, Fxyd5, Gimap6, C... | Meis1, Plek, Etv6, Mef2c, Pbx1, Zeb2, Foxn3, C... | platelet degranulation (GO:0002576), regulated... |
| 2 | 2 | Ptprg, Arhgap31, Fgd5, Zfp608, Sparc, Erg, Prk... | Zfp608, Erg, Elk3, Gli3, Tsc22d3, Junb, Ets2, ... | extracellular structure organization (GO:00430... |
| 3 | 3 | Lgr5, Aplnr, Id3, H2afy2, Pde4dip, Gpc6, Car4,... | Id3, Klf5, Ebf1, Lef1, Smad6, Aff3, Mycn, Zfhx... | positive regulation of endothelial cell prolif... |
| 4 | 4 | Rit1, Dpf2, Nrtn, Lama4, Myl9, Bcat2, Prpf38b,... | Dpf2, Emx2, Nfxl1, Gata2, Camta1, Dnmt3a, Myb,... | extracellular matrix organization (GO:0030198)... |
| 5 | 5 | Gm15915, Sema6a, Endog, Abcg1, Il9r, Lsm3, Smi... | Dnajc21, Hmga1, Tgif2, Dr1, Ikzf2, Trp53, Esrr... | |
| 6 | 6 | Emp3, Fpgs, Arl15, Qdpr, Focad, Hadh, Tnni1, A... | Ubtf, Zc3h8, Mbd6, Mta1, Zfp385a, Zfp62, Zfp77... | |
| 7 | 7 | Dhx16, Zfp654, Vcpip1, Sord, Fam185a, Adck1, G... | Gmeb2, E2f2, Zc3h7a, Noc3l, Gata1, Mef2d, Zcch... | |
| 8 | 8 | Car1, Nxpe2, Psd3, 2300009A05Rik, Rbp1, Fundc2... | Mllt3, Arid3a, Klf3, Cebpg, Zfp251, Runx1t1, Z... | heme biosynthetic process (GO:0006783), porphy... |
| 9 | 9 | Slc4a1, Ifi35, Trib3, Hebp1, Ipp, Vamp7, Kpna2... | Ttf1, Xbp1, Hbp1, Sfpq, Zscan21, Gfi1b, Arid3a... | heme biosynthetic process (GO:0006783), porphy... |

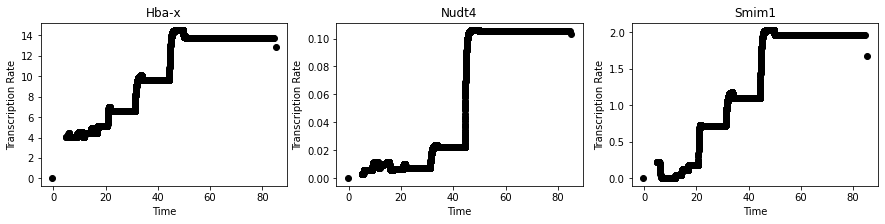

Plot transcription rate for MURK genes:
[22]:
import torch
import numpy as np
import matplotlib.pyplot as plt
def mu_alpha(alpha_new, alpha_old, tau, lam):
'''Calculates transcription rate as a function of new target transcription rate,
old transcription rate at changepoint, time since change point and rate of exponential change process'''
return (alpha_new - alpha_old) * (1 - torch.exp(-lam*tau)) + alpha_old
def mu_mRNA_continuousAlpha_withPlates(alpha, beta, gamma, tau, u0, s0, delta_alpha, lam):
''' Calculates expected value of spliced and unspliced counts as a function of rates, latent time, initial states,
difference to transcription rate in previous state and rate of exponential change process between states.'''
mu_u = u0*torch.exp(-beta*tau) + (alpha/beta)* (1 - torch.exp(-beta*tau)) + delta_alpha/(beta-lam+10**(-5))*(torch.exp(-beta*tau) - torch.exp(-lam*tau))
mu_s = (s0*torch.exp(-gamma*tau) +
alpha/gamma * (1 - torch.exp(-gamma*tau)) +
(alpha - beta * u0)/(gamma - beta+10**(-5)) * (torch.exp(-gamma*tau) - torch.exp(-beta*tau)) +
(delta_alpha*beta)/((beta - lam+10**(-5))*(gamma - beta+10**(-5))) * (torch.exp(-beta*tau) - torch.exp(-gamma*tau))-
(delta_alpha*beta)/((beta - lam+10**(-5))*(gamma - lam+10**(-5))) * (torch.exp(-lam*tau) - torch.exp(-gamma*tau)))
return torch.stack([mu_u, mu_s], axis = -1)
def mu_mRNA_continousAlpha_globalTime_twoStates(alpha_ON, alpha_OFF, beta, gamma, lam_gi, T_c, T_gON, T_gOFF, Zeros):
'''Calculates expected value of spliced and unspliced counts as a function of rates,
global latent time, initial states and global switch times between two states'''
n_cells = T_c.shape[-2]
n_genes = alpha_ON.shape[-1]
tau = torch.clip(T_c - T_gON, min = 10**(-5))
t0 = T_gOFF - T_gON
# Transcription rate in each cell for each gene:
boolean = (tau < t0).reshape(n_cells, 1)
alpha_cg = alpha_ON*boolean + alpha_OFF*~boolean
# Time since changepoint for each cell and gene:
tau_cg = tau*boolean + (tau - t0)*~boolean
# Initial condition for each cell and gene:
lam_g = ~boolean*lam_gi[:,1] + boolean*lam_gi[:,0]
initial_state = mu_mRNA_continuousAlpha_withPlates(alpha_ON, beta, gamma, t0,
Zeros, Zeros, alpha_ON-alpha_OFF, lam_gi[:,0])
initial_alpha = mu_alpha(alpha_ON, alpha_OFF, t0, lam_gi[:,0])
u0_g = 10**(-5) + ~boolean*initial_state[:,:,0]
s0_g = 10**(-5) + ~boolean*initial_state[:,:,1]
delta_alpha = ~boolean*initial_alpha*(-1) + boolean*alpha_ON*(1)
alpha_0 = alpha_OFF + ~boolean*initial_alpha
# Unspliced and spliced count variance for each gene in each cell:
mu_RNAvelocity = torch.clip(mu_mRNA_continuousAlpha_withPlates(alpha_cg, beta, gamma, tau_cg,
u0_g, s0_g, delta_alpha, lam_g), min = 10**(-5))
alpha_0 = alpha_OFF + ~boolean*initial_alpha
alpha_cg = mu_alpha(alpha_cg, alpha_0, tau_cg, lam_g)
return mu_RNAvelocity, alpha_cg
[23]:
n_cells = len(adata.obs_names)
n_vars = len(adata.var_names)
[24]:
mu_m = []
alpha_cg = []
for m in range(n_modules):
print(m)
mu, alpha, = mu_mRNA_continousAlpha_globalTime_twoStates(
torch.tensor(mod.samples['post_sample_means']['A_mgON'][m,:]),
torch.tensor(0., dtype = torch.float),
torch.tensor(mod.samples['post_sample_means']['beta_g']),
torch.tensor(mod.samples['post_sample_means']['gamma_g']),
torch.tensor(mod.samples['post_sample_means']['lam_mi'][m,...]),
torch.tensor(mod.samples['post_sample_means']['T_c'][...,0]),
torch.tensor(mod.samples['post_sample_means']['T_mON'][...,m]),
torch.tensor(mod.samples['post_sample_means']['T_mOFF'][...,m]),
torch.zeros((n_cells, n_vars)))
mu_m += [m]
alpha_cg += [alpha]
alpha = np.stack(alpha_cg, axis = 0)
0
1
2
3
4
5
6
7
8
9
[25]:
MURK_genes = ['Hba-x', 'Smim1', 'Dcxr', 'Cox6b2', 'Gypa', 'Cpox', 'Hbb-bh1', 'Nudt4', 'Hbb-bt']
[26]:
fig, ax = plt.subplots(1,3,figsize = (15, 3))
count = 0
for g in [0,7,1]:
ax[count].scatter(mod.samples['post_sample_means']['T_c'][:,0,0],
np.sum(alpha_cg, axis = 0)[:, np.where(adata.var_names == MURK_genes[g])[0][0]],
c = 'black')
ax[count].set_title(MURK_genes[g])
ax[count].set_xlabel('Time')
ax[count].set_ylabel('Transcription Rate')
count += 1
plt.savefig(results_path + data_name + 'MURK_geneTranscription_rate.pdf', bbox_inches="tight")
We can also plot module specific velocities although this does not often work well:
[27]:
mod.compute_and_plot_module_velocity(adata, save = results_path + data_name + 'module_velocity_plots.png',
plotting_kwargs = {"color": 'clusters', 'legend_fontsize': 10,
'legend_loc': 'right_column', 'min_mass': 4.4})
Computing velocity produced by Module 0 ...
Computing velocity produced by Module 1 ...
Computing velocity produced by Module 2 ...
Computing velocity produced by Module 3 ...
Computing velocity produced by Module 4 ...
Computing velocity produced by Module 5 ...
Computing velocity produced by Module 6 ...
Computing velocity produced by Module 7 ...
Computing velocity produced by Module 8 ...
Computing velocity produced by Module 9 ...
[ ]:
